The INOVA load frame is a reliable, industry-leading solution for single-axis and advanced multi-axis loading applications.
Use Cases
Test System Components
Key Benefits
Wide size range
Customize with ease
Optimized for specific use cases
INOVA Component Optimization Design
Flexible drive modes
Hydraulic or electric drive available
Add more attachments
Humidity and temperature simulation, etc.
The INOVA carrier frame design delivers superior test results in any application, including high-frequency and high-speed testing. INOVA offers a comprehensive portfolio of carrier frames to meet your needs:

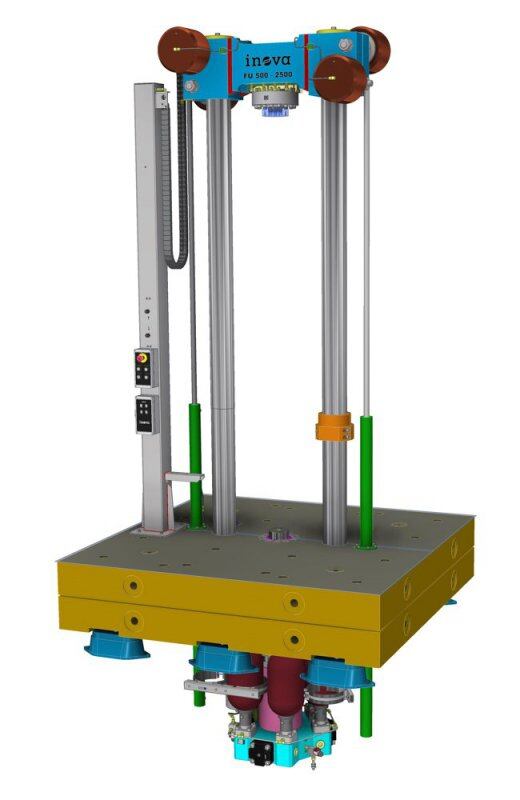

Standard FrameworkVertical loading axis with 2-column or 4-column configuration. Hydraulic actuators are mounted on the worktable or crossbeam. An enhanced version is available, featuring a combined tension-torsion loading unit on the crossbeam. All loading components—including linear actuators, torsional actuators, and their coupling mechanisms—utilize hydrostatic bearings to ensure exceptional precision, performance, and durability.
High-speed transport framework— Designed for high-speed and high-frequency applications, including multi-axis loading scenarios.
Custom dedicated load-bearing frame— For single-axis or multi-axis load testing.
Thanks to its advanced mechanical and hydraulic design, the INOVA load frame can be integrated into safety test rigs up to PL e.
Application Scope
- Uniaxial or torsional loading
- Multi-axis loading
- Fast Loading
- High-frequency loading
Configuration Options
- Two-column or four-column load frame with actuators mounted on the worktable or crossbeam
- Beam movement: Manual or automatic control via test sequence
- Tiltable Load-Bearing Frame – Simulates Real-World Load Directions
- Beam locking method: mechanical or hydraulic
- High-frequency single-axis or multi-axis suspended low-damping load-bearing frame
- High-speed chassis frame – added mass block and low-frequency suspension
- High-Safety Hydraulic Manifold Block
- Actuators, fixtures, grippers, temperature control chambers, and other accessories
Advanced components developed and manufactured in-house by INOVA
- Standard or Dedicated Carrier Frame
- Hydrostatic linear actuator and torsional actuator
- High-Safety Hydraulic, Mechanical, and Electronic Safety Components — Including Load Frame Adjustment and Specimen Fixation
- Hydraulic and Mechanical Grippers and Fixtures for LCF, HCF, Crack Opening, and Three-Point/Four-Point Bending Tests
- Vibration isolation device for the support frame
- Temperature Control Chamber for High and Low Temperature Testing
- Safety guard or fence
- Safety Oil Manifold – PLC, PLd, or PLe
Get detailed technical documentation
For full technical specifications, selection guides, or pricing for the hosting framework, please contact our technical team.
