Railway Bogie and Wheelset Test Rigs
Rail Bogie and Wheelset Test Rig
Product Overview
INOVA's advanced test systems, developed in collaboration with leading global rail vehicle manufacturers, offer an efficient solution for bogie and wheelset testing under real-world operating conditions.
Use Cases
Bogie and Wheelset Durability Validation │ Wheel-Rail Contact Fatigue Life Assessment
Key Benefits
INOVA Hydrostatic Bearing Hydraulic Actuator
High lateral load resistance, optimized for railway test conditions.
INOVA Zero-Backlash Spherical Hinge
Polyamide coating ensures precise force transmission under multi-axis loading.
EU3000 Multi-Channel Control System
Supports multi-axis coordinated loading conditions: vertical, horizontal, and longitudinal.
Rich software modules
ITRM, Real-time Iteration, Vibration Module, Seismic Simulation Module
Industry
Rail Transit
Rail Bogie Test Rig
The INOVA wheelset test rig simulates advanced test conditions by applying torque, radial force, and axial loads to specimens. It supports multiple configurations: rotating the specimen assembly or keeping it stationary while rotating the load vector. The INOVA solution precisely replicates real-world factors, such as the dynamic torsional loads on the specimen caused by train inertial mass during acceleration and braking.

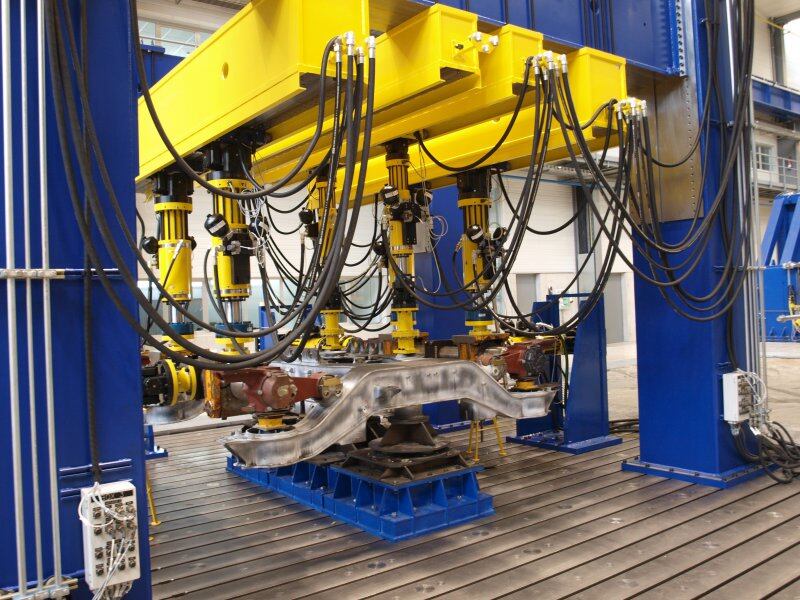

The bogie test rig features a universal adjustable load frame capable of accommodating numerous vertical and horizontal actuators. INOVA multi-channel control electronics ensure high-precision loading across all controlled directions.
The automatic hydraulic power unit control function enables high-efficiency operation of high-power systems.
Application Scope
- Dynamic axial and radial loading of wheel forces
- Wheel Rotational Force Vector Loading
- Complex rotating wheel test with torsional, radial, and axial loads
- Brake Test
- Multi-axle Bogie Durability Test
Configuration Options
- Single-axis test bench – for radial wheel loading
- Dual-Axis Test Bench – For Radial and Axial Wheel Loading
- Rotating Force Vector Test Bench – Generates Rotating Load Vectors via Unbalanced Masses
- Rotational Test Bench – Equipped with drive and brake motors, a short-duration high-torque braking flywheel, and linear actuators for axial and radial loading.
- Brake Tester
- Modular Test Rig – Equipped with Adjustable Gantry, Actuators, and Joints for Bogie Testing
Advanced components developed and manufactured in-house by INOVA
- INOVA Multi-Channel Control Unit
- Zero-backlash spherical joints and universal joints
- Offline and Online Iteration Software Packages
- Hydrostatic Bearing Hydraulic Actuator — High Lateral Load Resistance
- Hydrostatic Bearing Linear Guide
- Maintenance-free spherical plain bearing
- VFD with EtherCAT Connection for Fast Control Loop Integration
- Flywheel and other components of the rotating loading chain
- Hydraulic Power Unit – Fast Start, Optimized Fuel Efficiency
Get detailed technical documentation
For complete technical specifications, configuration options, or pricing for railway bogie and wheelset test stands, please contact our technical team.
