Shake Tables
Vibration Table
Product Overview
The INOVA shaker was co-designed with leading European partners, primarily serving automotive component testing and seismic simulation. It delivers an integrated customer solution combining superior performance with exceptional value.
Use Cases
Vibration Test
Key Benefits
INOVA Hydraulic Cylinder
Designed and optimized for specific applications to deliver peak performance and reliability.
INOVA Adjustable Ball Joint
Backlash-free design with polyamide coating ensures precise motion transmission.
INOVA Control System
Control loop frequency up to 50 kHz for fast response and precise control.
Software System
Real-time Iteration Module, Vibration Module, and Seismic Simulation Module with comprehensive functionality.
Industry
Power Engineering
Heavy Equipment
Construction Engineering
Automotive Manufacturing
Six-Axis Vibration Table
Thanks to advanced designs of all key components—including the base frame, vibration isolation suspension system, hydraulic power unit, and temperature control box—the INOVA shaker delivers low ambient vibration, high energy efficiency, and easy operation and maintenance.
The multi-axis INOVA shaker features state-of-the-art components, including actuators, spherical joints, and linear bearings, all self-developed and manufactured with hydrostatic bearings. This advanced technology enables precise control and offers an exceptionally long service life, requiring no periodic adjustment or lubrication.
For optimal test performance, the system uses our EU 3000 high-speed multi-channel control electronics to deliver advanced features such as coordinate transformation between actuators and controlled motion directions.
Depending on your application, INOVA vibration tables offer either pre-designed systems or fully customized solutions, delivered with the required environmental chambers.
Application Scope
- Universal Single-Axis or Multi-Axis Vibration Shaker
- Custom Vibration Table
- Supports time-domain signals, spectral (PSD), or response spectrum (RRS) loading.
- Integrated temperature control chamber
Configuration Options

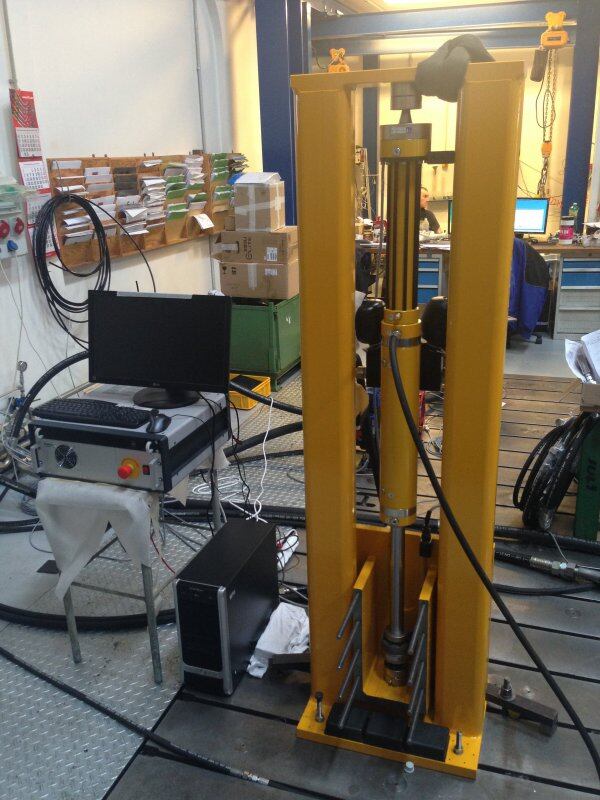

- Single-axis vertical or horizontal vibration table (1 degree of freedom)

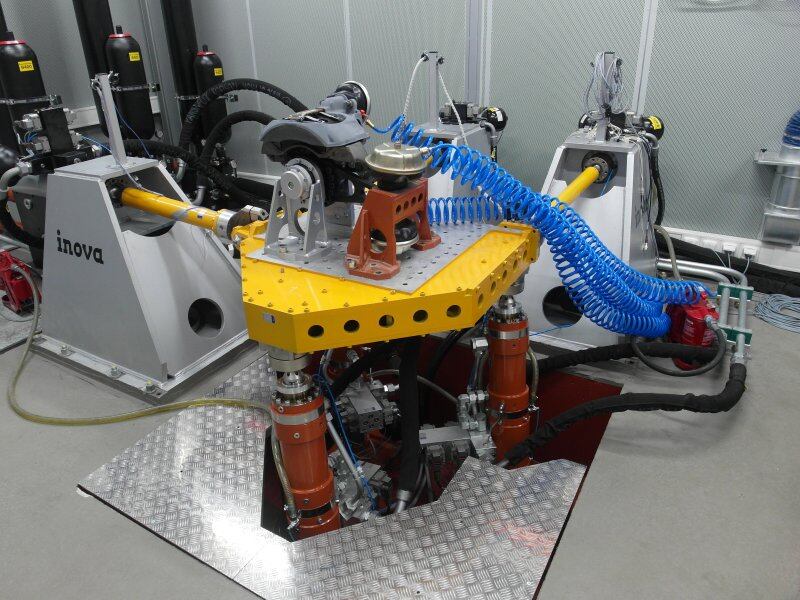

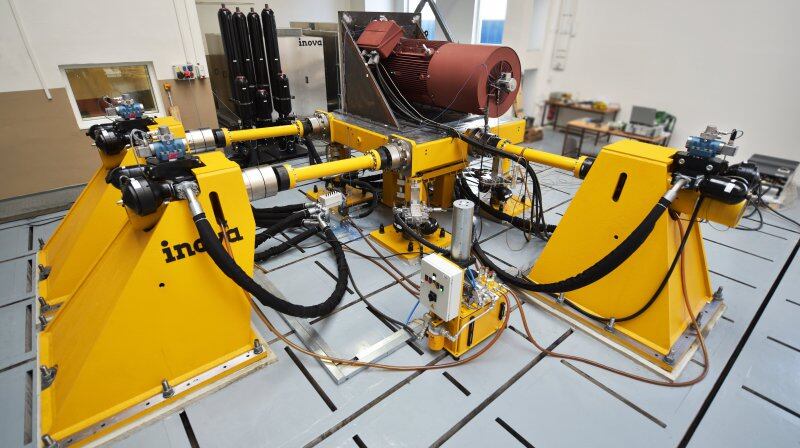

- 6-degree-of-freedom orthogonal shaker with universal base

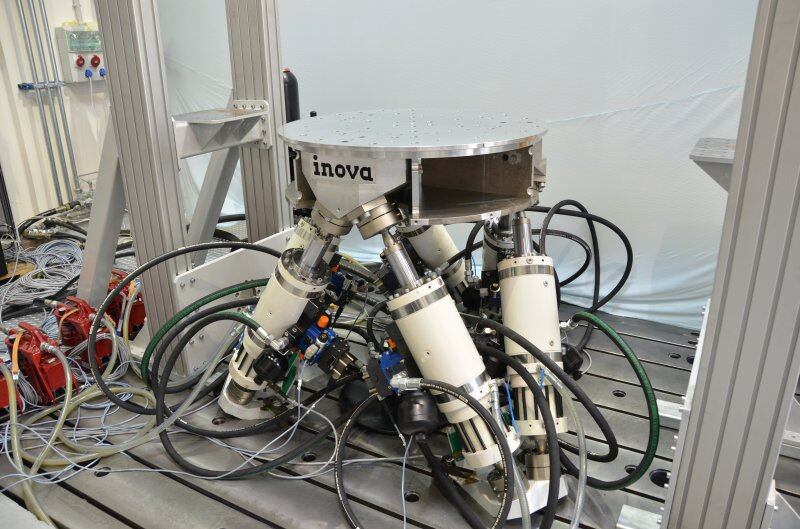

- 6 Degrees of Freedom Hexapod Shaker – Mobile Actuator, Low Acceleration
- 6-DOF Hexapod Vibration Table – Fixed Actuators, High Acceleration
- 2 to 6 DOF Orthogonal Custom Vibration Table
- Integrated vibration table with temperature control chamber
Advanced components developed and manufactured in-house by INOVA
- INOVA 10 kHz Control Electronics
- INOVA Modal Control – Coordinate System Transformation
- Offline and Online Iteration Software Packages
- Hydraulic actuator designed for high lateral loads and lateral acceleration tolerance
- Hydrostatic Bearing Linear Guide
- Maintenance-free spherical plain bearing
- Carbon Fiber Connecting Rod
- Temperature Control Box
Get detailed technical documentation
For complete technical specifications, configuration options, or pricing for vibration tables, please contact our technical team.
