Steering Test Systems
Steering Test System
Product Overview
The INOVA vehicle steering test rig is renowned for its exceptional reliability and performance, widely adopted by leading global automakers including TRW and Volkswagen Group. With advanced design and cutting-edge engineering, the INOVA test rig accurately simulates real-world operating conditions, ensuring all forces, load vectors, and motion trajectories correspond precisely to the vehicle's actual kinematic characteristics.
Use Cases
Steering System Durability Validation │ Extreme Condition Life Assessment
Key Benefits
Comprehensive real-time testing (HIL) under actual operating conditions
Precisely simulate real-world operating conditions, ensuring all forces, load vectors, and motion trajectories align with the vehicle's actual kinematic characteristics.
EU3000 RTC Advanced Digital Control System
Leverages advanced digital control technology for high-precision, multi-channel coordinated control.
CANbus and FlexRay Integration with REST Bus Simulation
Supports standard in-vehicle interface communication and models interactions with other in-vehicle systems.
Industry
Heavy Equipment
Automotive Manufacturing

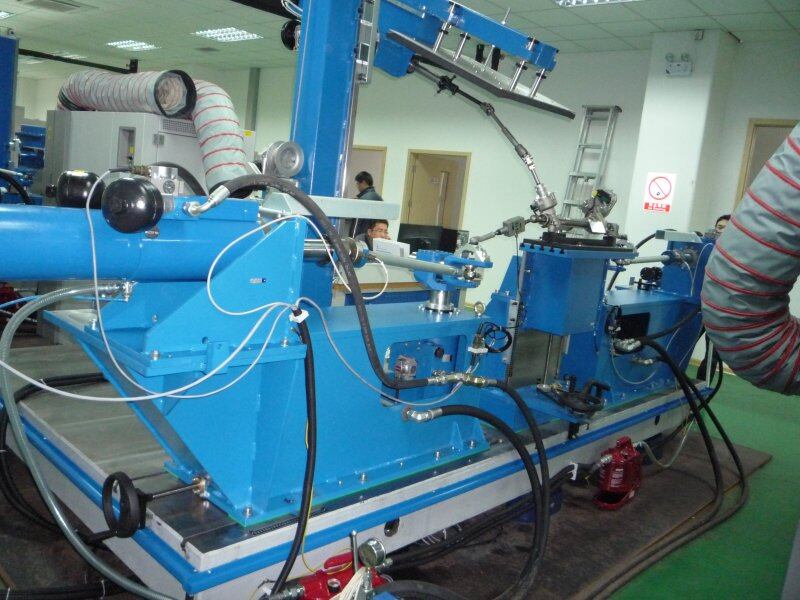

Steering Test Bench
The INOVA vehicle steering test rig is renowned for its exceptional reliability and performance, widely adopted by leading global automakers including TRW and Volkswagen Group. With advanced design and cutting-edge engineering, the INOVA test rig accurately simulates real-world operating conditions, ensuring all forces, load vectors, and motion trajectories correspond precisely to the vehicle's actual kinematic characteristics.
Application Scope
- Durability Test
- Steering Function Parameter Test
- Dynamic testing of steering columns, electric steering column drive units, and steering wheel adjustment systems
Configuration Options
- Durability Test Bench – Optional Dynamic Vertical Wheel Motion Simulation
- Performance Test Bench – Comprehensive Testing of Steering System Performance and Parameters
- Online Benchmark Comparison System – Compare in-production products against reference standards
- Durability Test Bench for Electric Power Steering Column Drive Unit
- Steering Column Durability Test Bench – Rotation, Torsion, and Axial Force Testing
- Steering Wheel Adjustment System Dynamic Test Bench
Professional components independently developed and manufactured by INOVA
- EU3000 RTC Advanced Proprietary Test Software Suite
- INOVA Multi-Channel Control System
- Zero-backlash ball joint
- CAN, CAN FD, and FlexRay interfaces; Restbus simulation
- Hydrostatic Bearing Linear Actuator and Torque Actuator
- High-Precision Electric Rotary and Linear Actuation Devices
- Temperature Control Box
Get detailed technical documentation
For complete technical specifications, configuration options, or pricing information on the steering test system, please contact our technical team.
